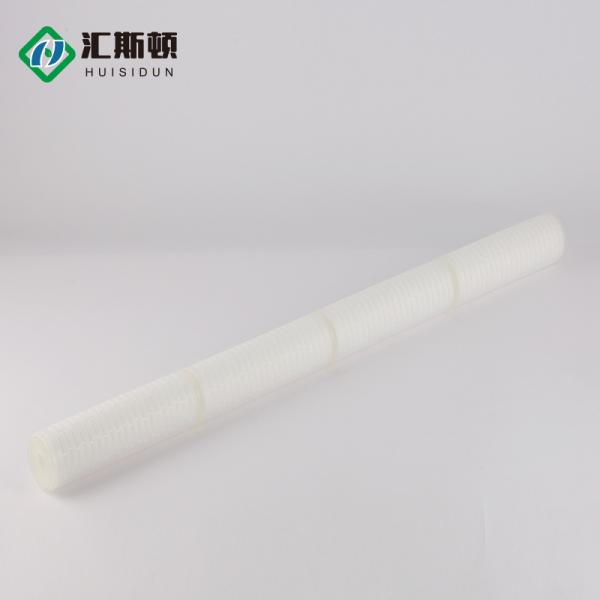

40 Inch 0.1um 0.22um 0.45um PES PP Pleated Filter Cartridges For Municipal Tap Water

Name: 40 Inch 01um 022um 045um PES PP Pleated Filter Cartridges For Municipal Tap Water
Brand: huisidun
Price: 2.00 USD

Wholesale 40 Inch 0.1um 0.22um 0.45um PES PP Pleated Filter Cartridges For Municipal Tap Water from china suppliers

Place of Origin : Shandong, China

Brand Name : huisidun

Certification : RoHS/ISO9001

Packaging Details : According to customer requirements

Supply Ability : 50000000 Piece/Pieces per Year

MOQ : 100 pieces

Price : $2.00/pieces 100-499 pieces

Applicable Industries : Food & Beverage Factory, Printing Shops, Food & Beverage Shops

Weight (KG) : 0.5

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Engine

Warranty : 1 Year

Product name : Membrane Pleated Filter Cartridge

OEM : Accept Oem

Filter medium : PP Fibre Membrane

Size : 10'' 20'' 30'' 40''

maximum filtered water flow : 20inch filter element: 660LPM

Applicable water source : Municipal Tap Water

Filter material : Polypropylene Filter Medium

Maximum allowable operating temperature : folding PP:82℃

Application : Industrial

Port : qingdao

Contact Now

40 Inch 0.1um 0.22um 0.45um PES PP Pleated Filter Cartridges For Municipal Tap Water

Product Description

Brand	HuiSiDun
Filter medium	PES Fibre Membrane/PP Polypropylene
Support layer	Polypropylene (PP)
Filter cage	Polypropylene (PP)
Pore size	0.1,0.2,0.45,0.65,1µm
Length	5/10/20/30/40 inches
OD/ID	69 mm-34 mm
Gasket / O - rings	Silicone, NBR, EPDM, Viton
Interface	DOE,215,222,226flat/fins
End caps	DOE,0050,0050A,0050B
Sealing method	thermal bonding technique
Effective filtration area	0.6 m2/10"
Max. operating temperature	PES Fibre Membrane:140℃, 0.28 Mpa/PP Polypropylene:85℃/0.2 MPa; 25 ℃ (≥ 0.4 MPa)
Max. forwarder differential pressure	0.42 Mpa (25℃)
Max. reverse differential pressure	0.21 Mpa (25℃)
Sterilizing temperature	121℃ 30min

PVDF for liquid filtration	PVDF membrane for liquid filtration.
Absolute Rating	Filtration effective is ≥99.99%
Absolute Rating		Minimum pore size is 0.1um, suitable for critical liquid filtration
Wide Chemical	Suitable for strong alkaline and acid enviroment
compatability	Resistance to the halogens and oxide
High viscosity liquid filter	Best choice for critical filtration of high viscosity liquid.
High viscosity liquid filter
Materials	Filter Media: PVDF Membrane
		PVDF Membrane: Polypropylene
		Inner core: Polypropylene /SUS304
		Outer Support: Reinforced Polypropylene Cage
		Adapter: Polypropylene
Operating Conditions(操作条件)	Normal Operating Temperature: Up to 65℃ (149℉) )
		Max.Operating Temperature.: 90℃ (194℉)at P≤1.0 bar (14psi)
		Max.Operating Temperature.: 90℃ (194℉)at P≤1.0 bar (14psi)
		Normal Flow direction 4.2 bar (60 psi) at 25℃ (77℉);
		Reverse flow direction 2.1 bar (30psi) at 25℃ (77℉)
		PH Value compatibility: 1-13

Details Images

FAQ

1. Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer of all kinds of filtercartridges,housings and filtration systems. We provide you the total filtration solutions with our 15 years experience in theindustry. Asyou can see, Huiston is the hottest searching word in Alibaba.com. Thanks for finding us here.
2. Q: May I have samples?
A: Sure,of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes,of course if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products andprovide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What’s your MOQ?
A: Normally, 300 PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trialorder, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal.We would like to grow with you together.
7. Q: What is your general lead time?
A: Normally 3-7working days for off-the-shelf samples and 14-25 days for bulk production. 8. Q: How should I pay you? A: We strongly recommend Trade Assurance service on the Alibaba platform. T/T, L/C, Western Union,MoneyGram,etc are acceptable.
9. Q: What certificate do you have?
A: Our factory is ISO9001/OHSAS18000 certified. We have Environmental management,Raw material food grade etccertificate for the products we are manufacturing. and we have two private brands
10:Q: How should I place an order?
A: Please kindly click” send inquiry”or “contact supplier”, Then our sales engineer will recommend you suitable products for your selection also give some valuablesuggestion for your selection.
11:Q: Since you are famous, can I be your agent?
A: Welcome to join us, we are happy to have afurther discussion with you. Let’s work together to make the world cleaner, safer and more productive.
